Shandong Dolphinmed Technology Co .,Ltd ( summaried as "Dolphinmed"), is one professonal producer of ICU ventilator,anesthesia machine ,Medical Air Compressor,Anesthesia vaporizer,Anesthesia ventialtor,veterinary anesthesia machine,veterinary anesthesia ventilator,anesthesia NC parts etc., located at High Technology Development Area ,is high Technology Eterprise ,the R&D and Marketing Center located in China capital Beijing,own the independent NC center.

Product introduction


●Delivery accurate concentrations in various complex situations based on the advanced temperature, flow and pressure compensation,

●The biggest vaporizer producer in China, supply to anesthesia machine manufactuer at domestic and abroad.

●Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard---Food Grade Standard

●Gas filtration system adopts agglomeration copper, ensuring to supply clean gas to the patient and securing the patients safety to the maximum

●The internal key parts use imported materials with good air tightness.

●The big view window is convenient to observe drug usage levels.

●Provide a reliable and safe solution in filler types and mounting types.

●Designed sophisticated and produced strictly confirming to test standards;every vaporizer apply to international standard ISO8835-4.

●Made by special high tech materials, which prove the vaporizer anti-corrosion from agent. Special rubber gaskets ,it can make sure agent leak-proofness and corrosion-resistant.

●Safety locking device to prevent the anesthetic gas volatile accidentally

●No need for regular maintenance to Dvapo vaporizer

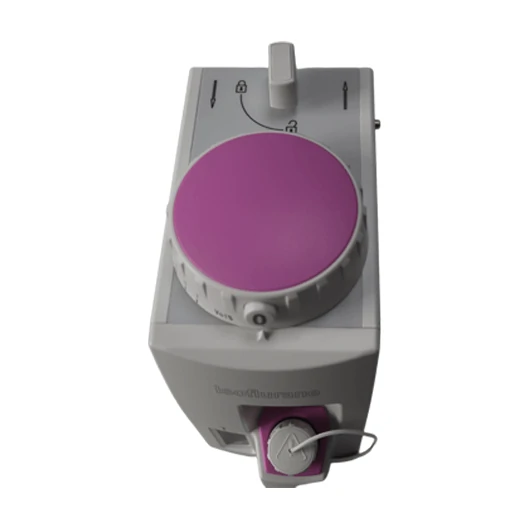

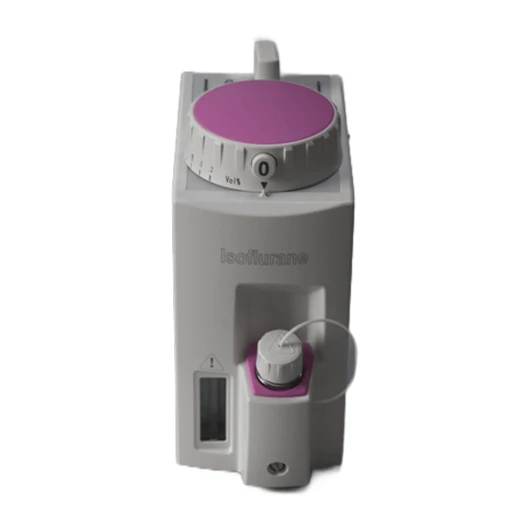

Anesthesia Vaporizer(Model:Dvapo200plus)Anesthesia Vaporizer(Model:Dvapo200plus)
Flowrate(L/min oxygen) Temperature°C

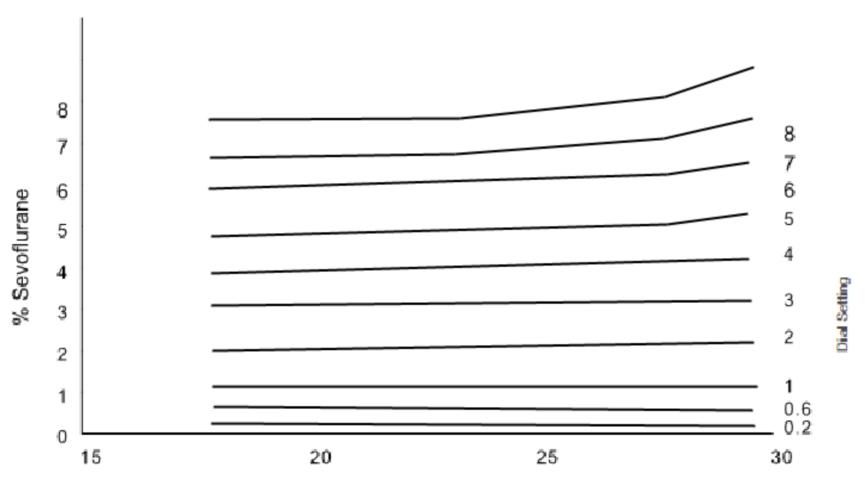

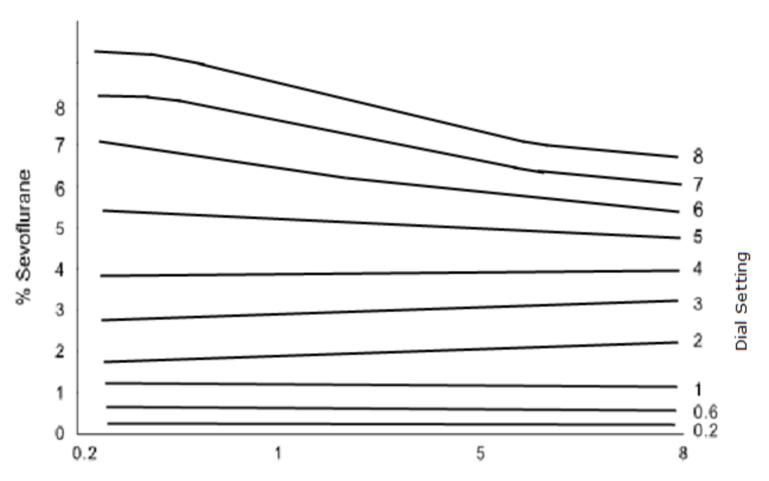

Flowrate influences at 20±3°C with oxygen flowingTemperature influences 5L/min with oxygen flow



Concentration range:

En.2 to 5%

Iso.0.2 to 5%

Hal.0.2 to 5%

Sev. 0.2 to 8%

Flow range:0.2 to 15L/min

0.2 to 10L/min(normal usage) For concentrations>5 vol%

Filling volume for agent:

About 340ml with dry wick

About 300 ml with moist wick

Mounting type:

Selectatec compatible

Draeger plug in(Option)

Cagemount(ISO 23mm tapers)(Option)

Cagemount with interlock (Option)

Filler type:




Quik -fill(only for sev.)(Option)

Operation environment

Flow meter:0.2~15L/min(0.2~10L/min For concentration>5%)

Temperature: 15~+35°C

Humidity: 0~95%

Atmospheric pressure: 70~106Pa

Storage/Transport environment:

Temperature: -40~+65°C

Humidity: 0~95%

Atmospheric pressure: 11.5~110Pa
