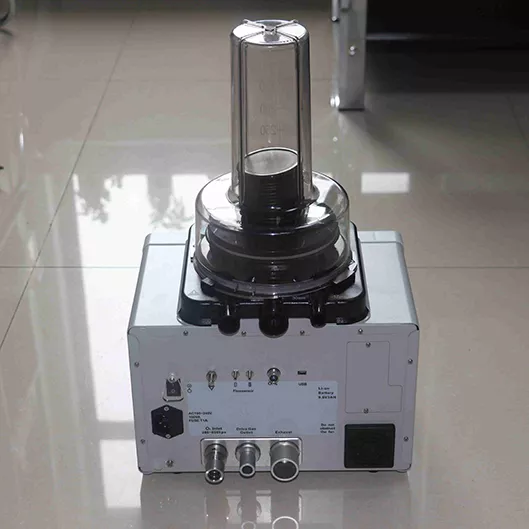

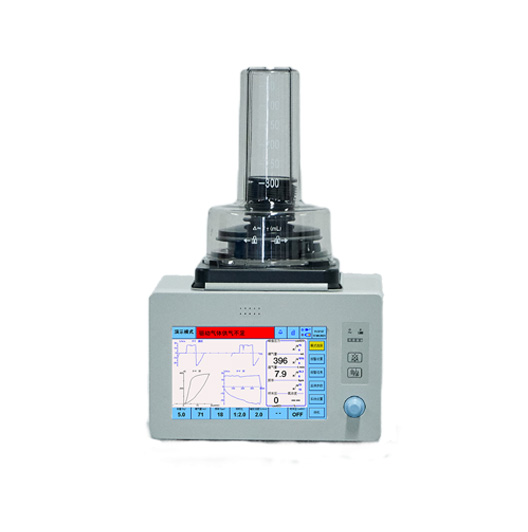

Product introduction

Feature：

Compact and salve the space.

Light and easy to move,save animal hospital cost.

automatically Calculation by weight to the other parameter

With breathing mode PCV mode, achieve the breathing automatically,

Assure the animal more comfortable.

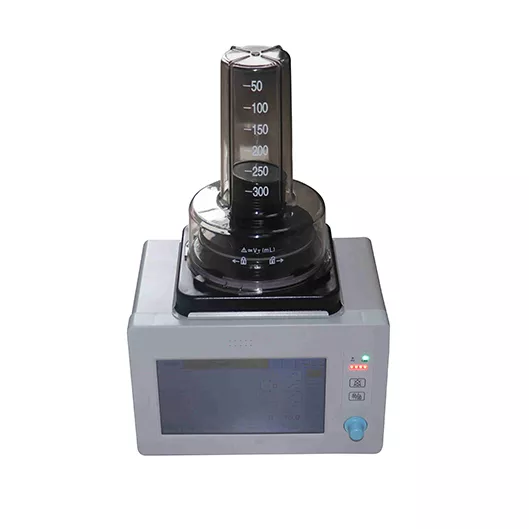

With big animal bellow and small animal bellow,specially for animal use

The gas source pipeline take the high precious gas source,no leakage forever.

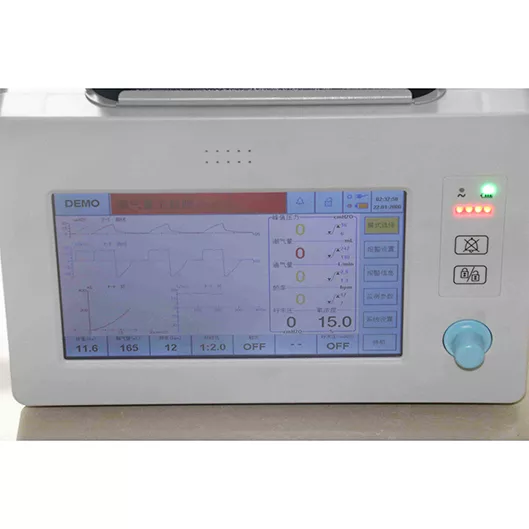

HD TFT Touch screen,perfect technology,touch at key to Set parameter ,very easy and simple to operate.

Build in battery could continue two more hours in case of power failure

Matching with different brand veterinary anesthesia machine

Basic description
Parameter		Description
Display		9 inch TFT, with touch screen.
Drive gas	Gas type	O2 or Air
	Inlet pressure	280-600 kPa.
	Max flow	≤ 120 L / min.
Operating Mode		VCV,PCV,SPONT,Manual，Demo
Waveform		Waveform: Pressure,Flow-rate,Volume Loop:PV loop, PF loop,FV loop
Safety Pressure		System pressure does not exceed 6 KPa.
Battery Type		Li-ion,work time more than 2 hours

Parameters setting range
Parameter	description
Tidal volume	Range: 20 - 1500ml; Increment: 1 mL;
Respiratory rate	Range: 1 ~ 100 bpm;
Inspiratory time	Range: 0.1 ~ 10.0 s
Respiratory ratio	Range: 9.9:1 to 1:9.9
Percentage of inspiratory pause	Range: 0 to 50%
PEEP	Range: OFF, 3 ~ 20 cmH2O
Pressure Support	Range: 0 ~ 60 cmH2O
Pressure Control	Range: 5 ~ 60 cmH2O
Flow trigger	Range: 0.5 ~ 20L/min
Pressure Trigger	Range: -1 ~ -20 cmH2O
PSV Insp Termination Level	25%.

Monitored parameters
Parameter	Description
Inspiratory tidal volume	Range: 0 ~ 2500 mL
Expiratory tidal volume	Range: 0 ~ 2500 mL
Minute ventilation	Range: 0 ~ 60 L / min
Spontaneous minute ventilation	Range: 0 ~ 60 L / min
Respiratory rate	Range: 0 ~ 100 bpm
Spontaneous breathing frequency	Range: 0 ~ 100 bpm
Respiratory ratio	Range: 9.9:1 to 1:9.9
Peak airway pressure	Range: 0 ~ 100 cmH2O
Mean airway pressure	Range: 0 ~ 100 cmH2O
PEEP	Range: 0 ~ 100 cmH2O
Inspiratory plateau pressure	Range: 0 ~ 100 cmH2O
FiO2(optional)	Range: 15 to 100%

Alarm settings
Alarm type		Range
Tidal volume	High	0 ~ 2000 mL, OFF
	Low	0 ~ 1500 mL
Minute ventilation	High	1 ~ 99 L
	Low	0 ~ 98 L
Respiratory rate	High	1 ~ 100bpm
	Low	0 ~ 99 bpm
FiO2(optional)	High	19 ~ 100%
	Low	18 ~ 99%
Airway pressure	High	6 ~ 99 cmH2O
	Low	0 ~ 9 8 cmH2O
FiCO2 (optional)	High	0.1 to 13.3%;
	Low	0 to 13.2%
Continuous Positive Airway Pressure		Airway pressure greater than (PEEP +15) cmH2O, 15 s sustained when an alarm is triggered.
Negative pressure alarm		Airway pressure is less than (-10) cmH 2 O.
Apnea alarm		Setting time is 10 ~ 60 s, in increments of 1 s.
Gas deficiency alarm		Gas pressure is less than 280 kPa.
AC power failure alarm		The mains breaks down or the power cord disconnects
Low battery alarm		Alarm battery time is 20 min.
Alarm battery is exhausted		Alarm battery time is 10 min.
Silent Alarm		≤ 120 s
O2 sensor failure		FIO2 <15% Vol;
