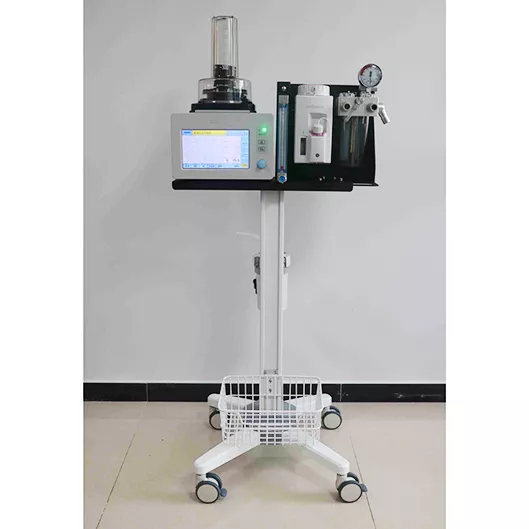

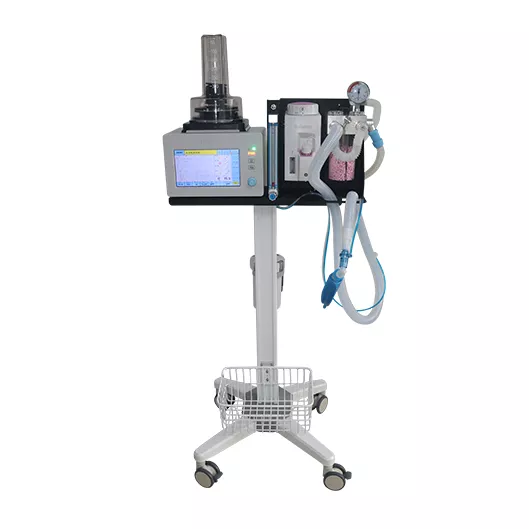

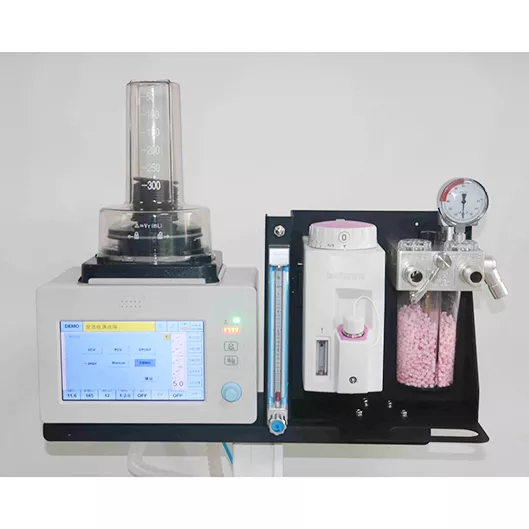

Dolphinmed delivery high precious veterinary anaesthesia equipment with ventilation manage system . It is suitable for animal hospital, pet clinic and animal laboratory. This technical index of animal anaesthesia machine can meet the needs of general anesthesia and medical research on mice, dogs, cats, rabbits, monkeys, pigs, sheep and other animals in animal laboratory.

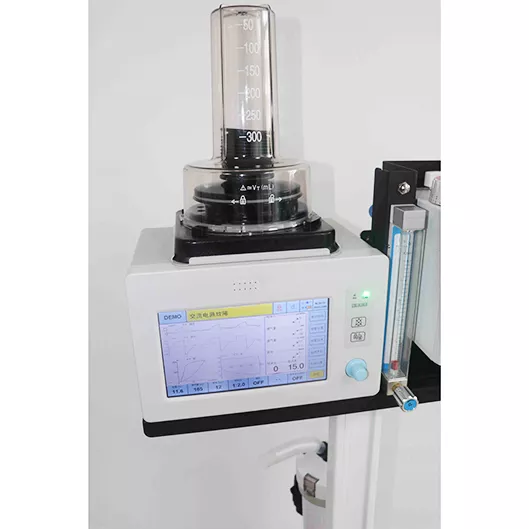

Smart 9-inch touch screen; integrated anesthesia machine with ventilator, saving labor costs
Respiration modes include PCV,VCV,SPONT,DEMO.Just set the weight, other parameters are automatically calculated
With Electric PEEP function
Animal-specific bellows design to meet the needs of clinical scientific research.
The internal battery can be used for more than two hours.
Suitable for small animals, Non-breathing circuit(Jackson or Bains Absorber) is available.
Selectatec-bar and quick change vaporizer mounting device.
Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.
External and reusable soda lime canister, easily watch and replace soda lime.
With Oxygen flush function to ensure that clinical anesthesia demand and Oxygen supply demand.
Anaesthesia CO2 absorber assembly has no dead angle design, fast anesthesia, short recovery and high precision. The CO2 absorber supports both open loop and closed loop anaesthesia design and provides independent access .
Provide a special Pop-Off valve,Occlusion design, it can connected to the exhaust gas recovery system and provide a continuous 2 cmH2O negative pressure for the reaspirato airbag ,reducing valve to prevent pressure to hurt the animal, ensure the animal safety .
Provides an accurate oxygen flow meter with a display range of 0 to 5LPM
Vaporizer: the output concentration is not affected by the change of flow, pressure and temperature, accurate and reliable, equipped with safety locking device to prevent
anesthetic leakage. Isoflurane,sevoflurane and halothane vaporizer are optional.
The hard aluminum solid shell is used, and the surface sanding treatment is adopted, so that the cleaning and disinfection are more convenient.
With fresh gas output connector ,specifically designed to accomodate low flow
|Vet Anesthesia ventilator|
Big animal t:50-1600ml,small animal:0-300ml
9 inches touch screen
PSV Inspiratory terminal level
Tidal volume,breathing rate,Spontaneous breathing rate,I:E,Spontaneous minute ventilation volume，Minute ventilation peak airway pressure,Average airway pressure,PEEP,Inspiratory platform pressure,FIO2
Tidal volume,Minute ventilation volume,Frequency,Airway pressure ,Continuous airway pressure,Negative pressure alarm,Apnea alarm,Air supply pressure failure alarm,Power supply alarm,Low battery alarm,Battery exhaustion alarm,Oxygen battery failure alarm,FIO2(optional),FICO2(optional)
