Feature：
v A wide range of ventilation at adult，pediatric and infant
v Easy to use interface design,12.1 color touch-screen TFT display and shuttle knob design, quick and efficient operation
v Integrated expiration module build-in heating system could be sterilized whole, ensure use safely and no cross-infection; no-water design, guarantee the precious detection.
v Pressure, volume, time respiratory mode security, could inspect pressure in inspiratory phase, volume, time exceed the regulated value, turn into expiratory, ensure patient safety.
v Simultaneously display of Three Waveforms&Two Loops,ETCO2 &SPO2
v High precious sensor and valve technology make sure the pressure ,flow and volume monitor and control at high safety, stability and precision
v With sensitive pressure and flow double trigger function.
v Build-in inspiratory and expiratory flow sensor, durable and water coagulation resistant.
v Maintenance-free imported flow sensor with heating and filtration technology
v Adjust SmartVent function automatically, adjust inspiratory pressure and breathing frequency, approaching the target tidal volume and minute ventilator.
v Three-level visual and audible alarm information system
v With Inspiration hold&Expiration hold,Manuel Breath and 100% O2 Flushing
v Lowest in class bias flow 2.0lpm，low O2 consumption
v Automatic tube&leakage compensation technology
v Upgradable to main stream Capnography（EtCO2）&Pulse Oximetry（SPO2
v With Non-invasive and invasive ventilation function
v Automatically inspiratory synchronous nebulizing function, nebulizing time adjustable;with tidal volume compensation（1-30 min）
v Built-in backup battery provide the emergency power supply 2 hours to the unit.

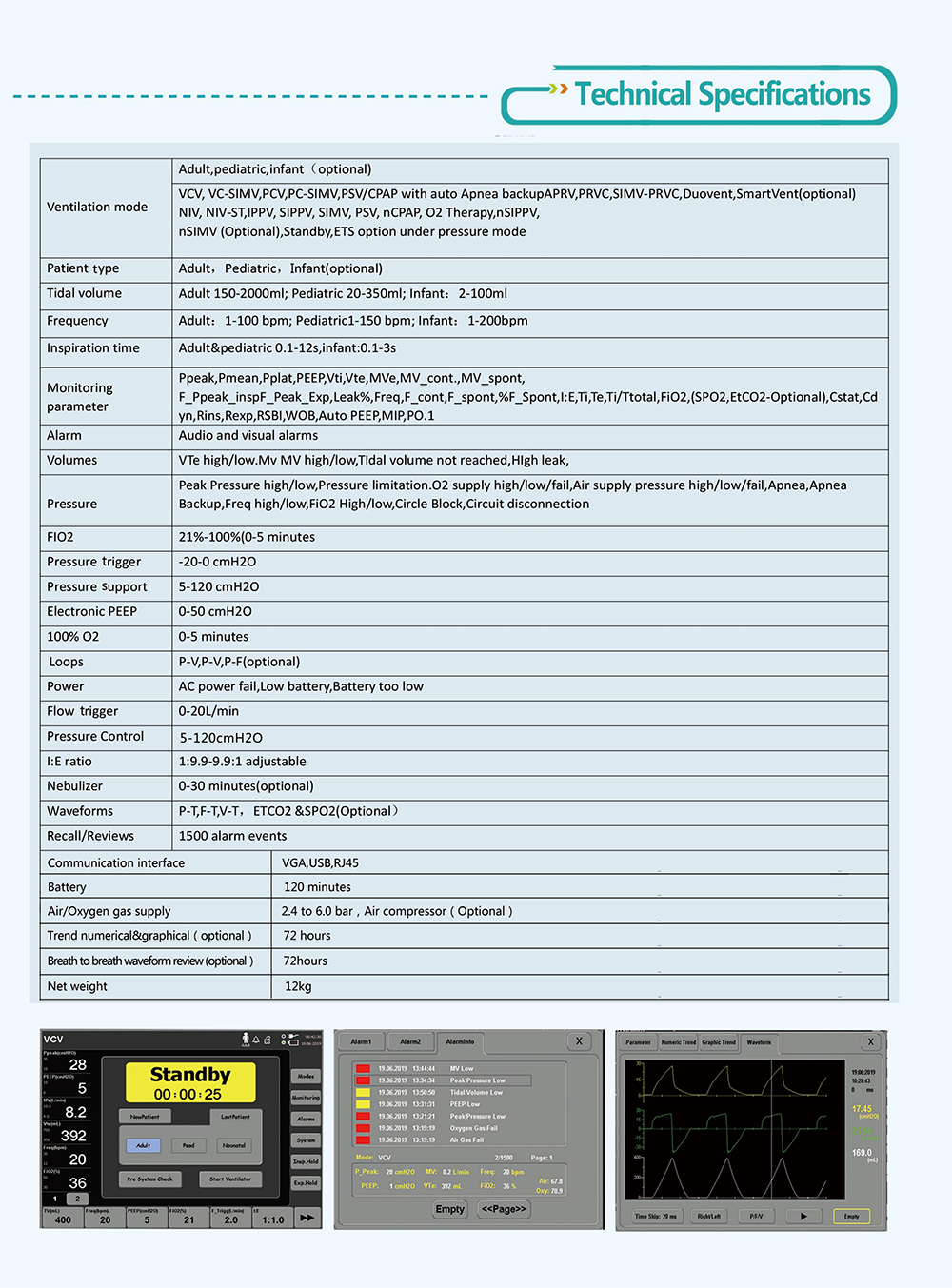

Technical Specifications
Ventilation mode for adult&pediatric,infant（optional)
VCV, VC-SIMV,PCV,PC-SIMV,PSV/CPAP with auto Apnea backup
APRV, PRVC,SIMV-PRVC,Duovent,SmartVent(optional)
NIV, NIV-ST,IPPV, SIPPV, SIMV, PSV, nCPAP, O2 Therapy,nSIPPV,
nSIMV (Optional),Standby
ETS option under pressure mode
Patient Type：Adult，Pediatric，infant(optional)
Tidal volume：Adult 150-2000ml; Pediatric 20-350ml; Infant：2-100ml
Frequency：Adult：1-100 bpm; Pediatric1-150 bpm; Infant：1-200bpm
Inspiration time:Adult&pediatric 0.1-12s,infant:0.1-3s
Monitoring parameter:Ppeak,Pmean,Pplat,PEEP,Vti,Vte,MVe,MV_cont.,MV_spont, F_Ppeak_insp，F_Peak_Exp,Leak%,Freq,F_cont,F_spont,%F_Spont,I:E,Ti,Te,Ti/T total,FiO2,(SPO2,EtCO2-Optional),Cstat,Cdyn,Rins,Rexp,RSBI,WOB,Auto PEEP,MIP,PO.1
Alarm:Audio and visual alarms
Volumes:VTe high/low.Mv MV high/low,TIdal volume not reached,HIgh leak,
Pressure:Peak Pressure high/low,Pressure limitation.O2 supply high/low/fail,Air supply pressure high/low/fail,Apnea,Apnea Backup,Freq high/low,FiO2 High/low,Circle Block,Circuit disconnection
Power:AC power fail,Low battery,Battery too low FIO2:21%-100%(0-5 minutes)
Flow Trigger:0-20L/min Pressure Trigger：-20-0 cmH2O
Pressure Control：5-120 cmH2O Pressure Support：5-120 cmH2O
I:E ratio：1:9.9-9.9:1 Electronic PEEP：0-50 cmH2O
Nebulizer：0-30 minutes(optional) 100% O2：0-5 minutes
Waveforms：P-T,F-T,V-T，ETCO2 &SPO2(Optional） Loops: P-V,P-V,P-F(optional)
Recall/Reviews： 1500 alarm events,
72 hours Trend Numerical&Graphical(optional)
72 hours Breath to Breath Waveform Review（Optional）
General info
Communication Interface：VGA,USB,RJ45
Net weight：12kg Battery：120 minutes
Air/Oxygen Gas supply：2.4 to 6.0 bar，Air compressor（Optional
）
